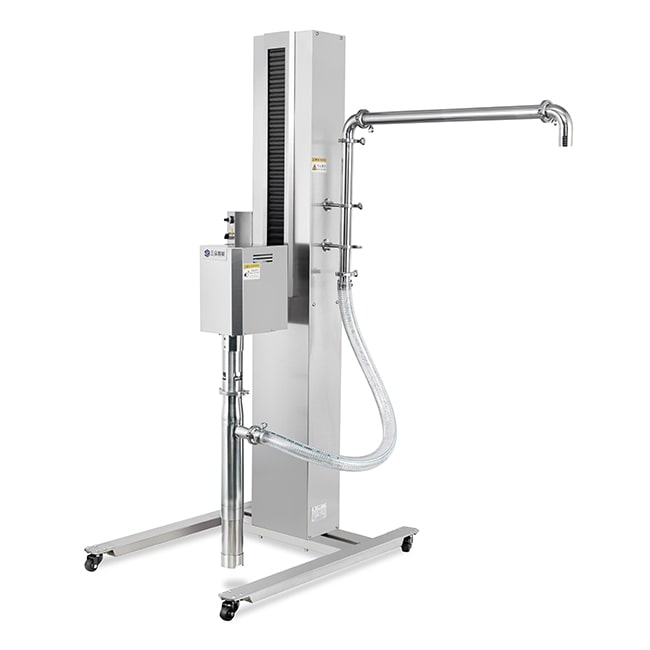

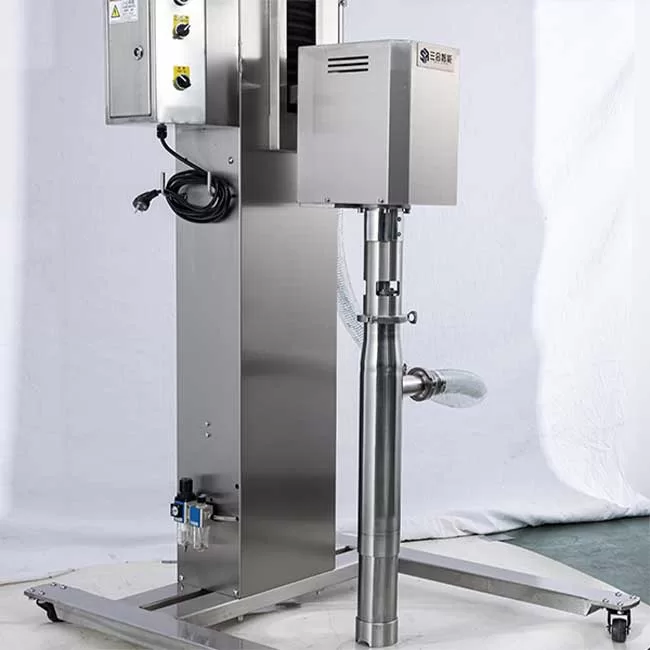

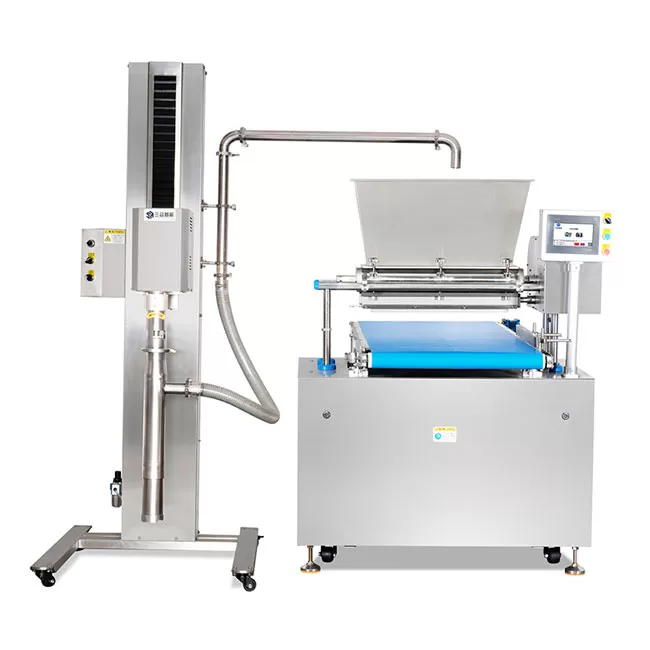

Bakery Transfer Pump SL1500

This bakery transfer pump is specially designed for the elevated conveying of fluid and semi-fluid raw materials. It is an ideal alternative to traditional cylinder hoists. Compared with traditional equipment, it is safer and more reliable in structural design, effectively avoiding the risk of leakage and failure that may occur during the cylinder lifting process, and ensuring the continuity and stability of production.

It adopts a soft and stable conveying method, which can achieve continuous and rapid raw material delivery while avoiding mechanical damage to the product. Its unique conveying process ensures that fluid and semi-fluid raw materials are not sheared or squeezed during transportation, keeping cakes and other baked goods delicate and soft, and improving the quality of the finished product.

The transfer pump adopts advanced volumetric conveying technology and is the ideal design among various pumping structures. Volumetric conveying ensures accurate and stable flow rate of each delivery, avoids bubbles and impurities, and ensures the uniformity and purity of cake ingredients.

INQUIRY
Bakery Transfer Pump SL1500
Bakery Transfer Pump SL1500
Bakery Transfer Pump SL1500
Bakery Transfer Pump SL1500
Applicable Products

cakes, mousse, chocolate, milk, jam, salad dressing and liquid eggs.

Machine Dimension

1250x1000x2050mm

Features
  • Applied to convey liquid and semi-fluid batter, mousse, egg tart water, muffin, chocolate paste, egg liquid, milk and other materials.
  • Replaces traditional manual feeding or cylinder lifting machines, eliminating the risks of foreign matter, falling cylinders, and highaltitude scraping operations.
  • The conveying is gentle and the flow rate is stable, which has little damage to the product structure.
  • Lifting design, suitable for various specifications of Storage tank 20~80L.
  • Storage tank height ≤ 800mm (lifting stroke 800mm).
Option

√ Level sensor.
√ Pipe distribution quantity, suitable for multiple machines to use at the same time.

Specification
Model SL1500
Power 0.8KW
Voltage/Frequency 220V/50HZ
Compressed Air Pressure & Fow 0.4-0.6MPa 100L/min
Capacity 1.5m³\hour
Hopper Volume
Dimension (L*W*H) mm 1250*1000*2050
