Syrup Spray Machine PTS4
This syrup sprayer is suitable for spraying sugar water, coffee liquid, and rum on the surface of cakes, mousse, and toast. It can also be used to spray egg liquid on the surface of croissants, bread, etc., meeting the surface treatment needs of various baked products.
The equipment is equipped with 4 high-precision spray guns, combined with a stable constant pressure system to achieve precise mixing ratio control of gas and liquid. The spraying particles are fine and uniform, without splashing or fogging, which effectively improves the uniformity and quality of the product surface coating, especially for delicate baked products with high requirements for spraying effects.

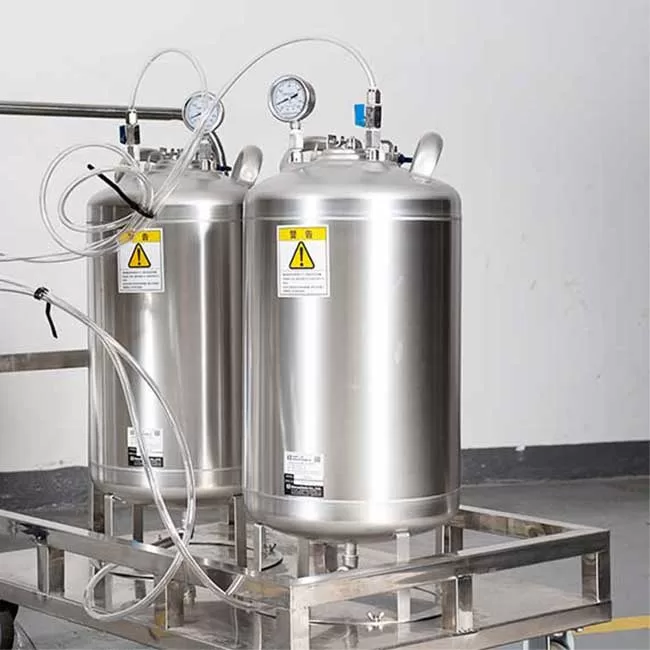

The spray machine is equipped with two stainless steel custom pressure liquid storage tanks, one for use and one for standby, which can be switched alternately to ensure continuous non-stop spraying operations and improve production efficiency and stability.
Sugar water, coffee water, rum, egg liquid, and other thin liquids.
1700x1430x1465mm
- It applies to spraying oil to the bottom and sides of the toast box, flat-bake plates, cake molds, etc.
- It is equipped with high precision spray nozzles and stable constant voltage system, precise fluid, gas flow mixing ratio control functions, contributing to high quality micro-particle spray effects and precision spraying, not generating splashing and fog.

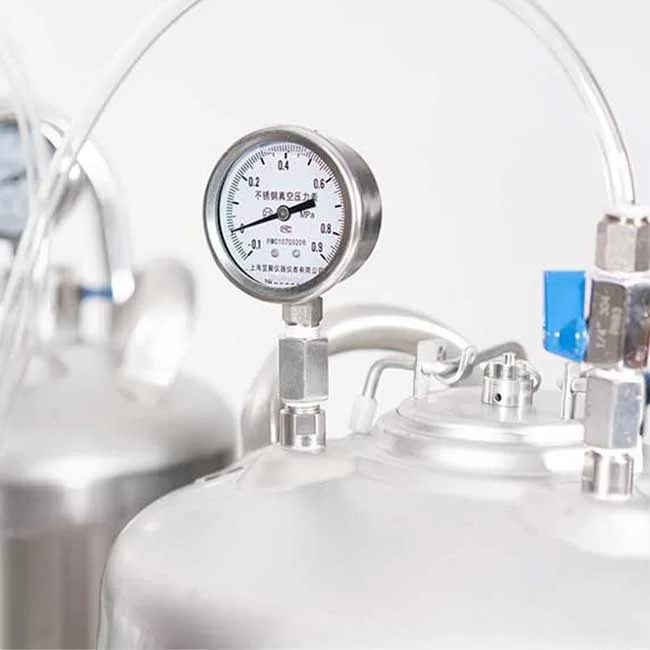

- The pressure control system has high safety performance, with an automatic pressure relief protection device when the pressure is too high.
- It adopts a compact modular design and residual fluid collecting device, making the operating environment more clean and facilitating the cleaning.
√ Injection nozzle and decorating nozzle.
√ Filling nozzle with hose.
√ Foot pedal.
√ Work with conveyor.
| Model | PTS4 | Configurable Options: Standard configuration: 6 spray gun system, 2 Storage tanks (18L), equipped with 1700mm conveyor line (660mm wide direction feed tray) |
| Power | 1.0KW | |
| Voltage/Frequency | 220V/50HZ | |
| Compressed Air Pressure & Fow | 0.4-0.6MPa 350L/min | |
| Capacity | 5~12trays/min | |
| Hopper Volume | ||
| Dimension (L*W*H) mm | 1700*1430*1465 |
