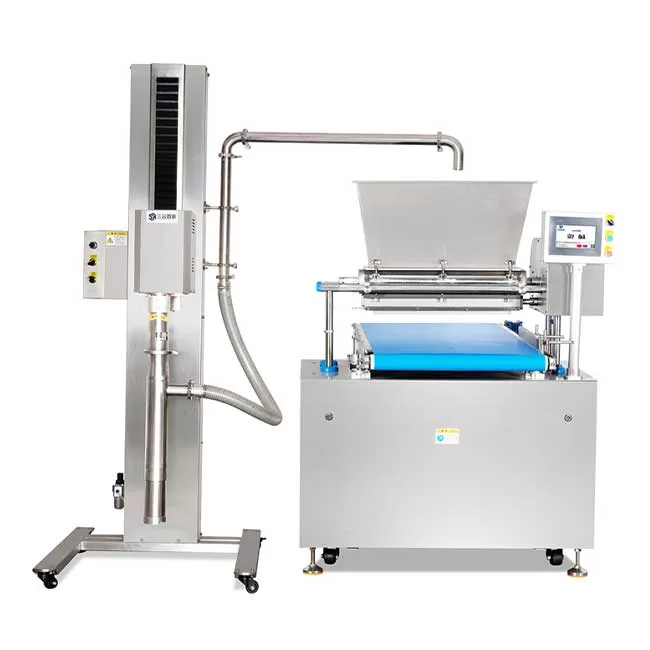

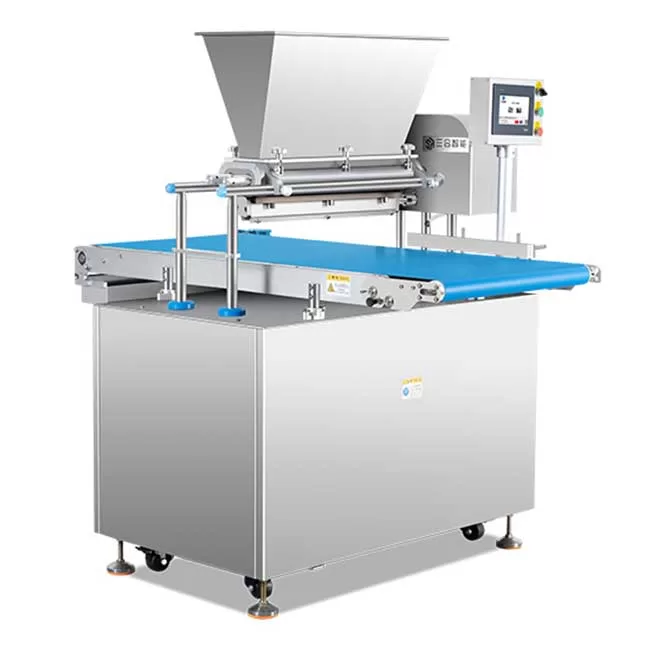

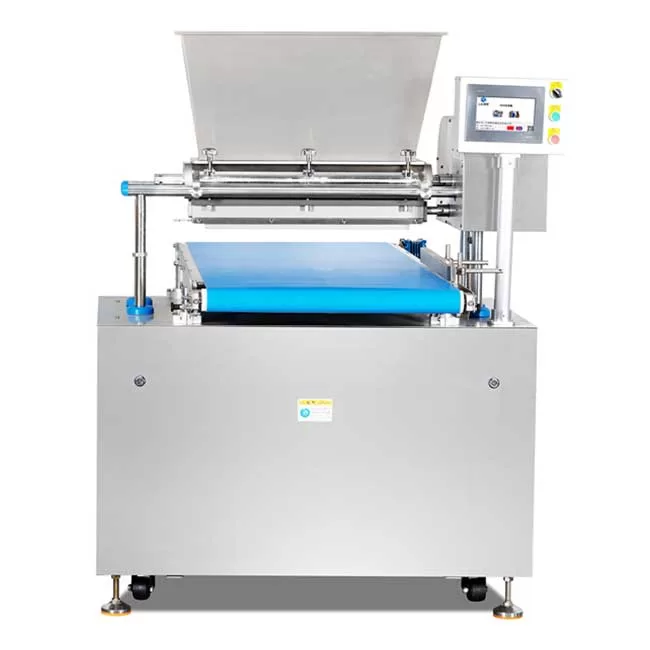

Muffin Depositor Machine C600-A
The muffin depositor machine adopts an advanced servo control system, which runs smoothly and responds quickly, and can achieve accurate filling of various fluid and semi-fluid materials. Whether it is light cake batter or sticky cheese, mousse, jam, etc., it can ensure the consistency of each portion, greatly improving production efficiency and product consistency.
The machine has a compact structure and stable operation. It is not only suitable for muffin filling, but also for pre-forming operations of products such as brownies, cheesecakes, chiffon, puffs, etc. One machine has multiple uses and is an ideal equipment for the modern baking industry to achieve automated and efficient production.
Semi-fluid to very heavy products: cake batter, cream, mousse, soft cheese, eclair, macarons.
1520×1250×1675mm
- Gear type: The servo-driven gear pump ensures high-precision dispensing and filling by accurately controlling the rotation angle.
- It is suitable for quantitative filling, decorating and spreading of semi-fluid and particle-free materials, such as sponge&chiffon cake batter, mousse, puffs, brownies, cream, jam and other materials; compatible with round and square mold production.
- It is highly flexible and can be applied to molds with different numbers of arrangements. For baking tray molds within the specification range, there is no limitation on the number and size of nozzles arranged in the same row, which is suitable for baking tray mold products of various specifications.
- The maximum compatible baking tray size is 660*440mm, and a rotating system can be configured (depending on the model).
- Parts that come into contact with food are easy to disassemble and clean, quick and safe.
- Strict material safety application, highlighting industry design standards.

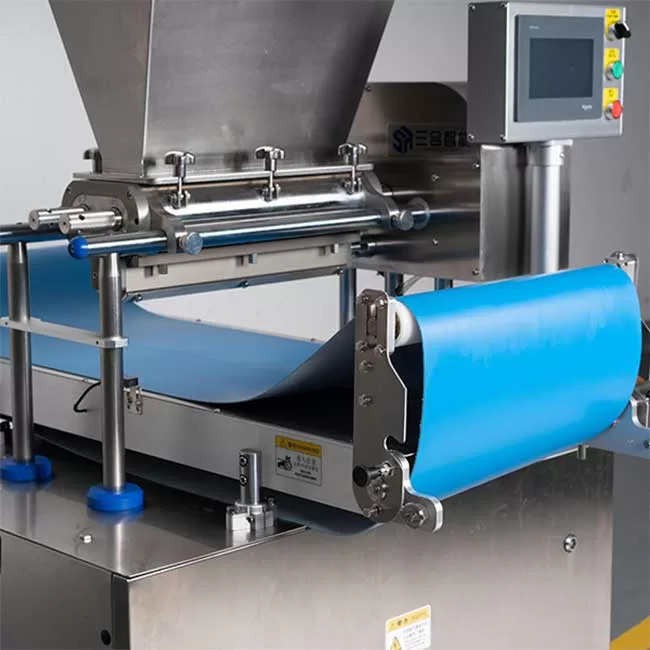

- Equipped with HMI and PLC system, the depositing weight can be freely adjusted.
- Production data can be saved in custom recipes and stored randomly.
- Multiple applications: spot depositing, whole plate depositing, stripe decorating, etc.

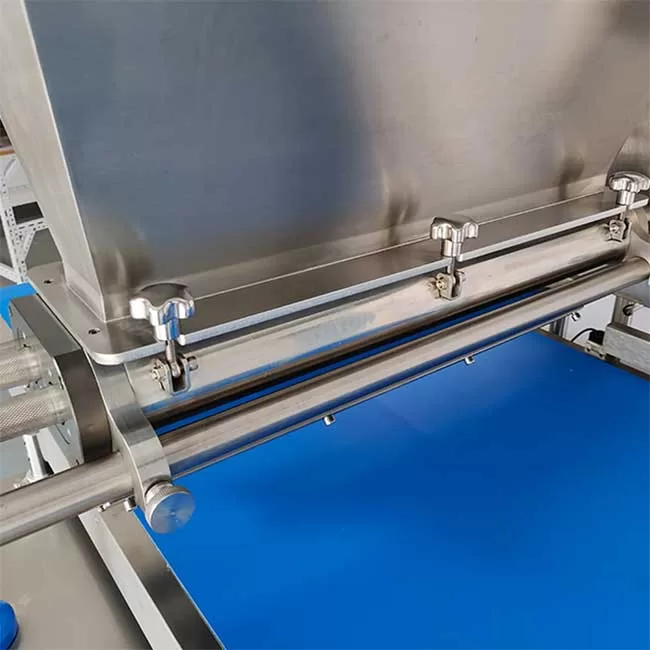

√ Hopper double layer heating system.

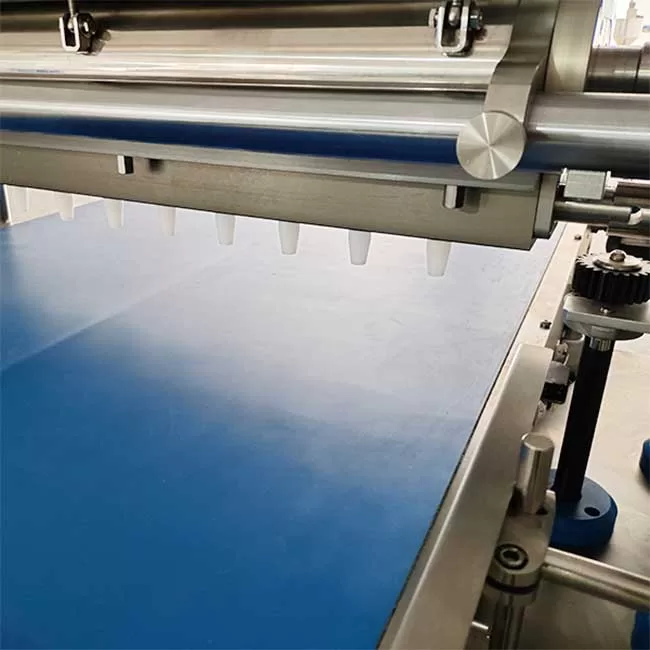

√ Various nozzle options.
√ Standard accessories and high precision accessories.

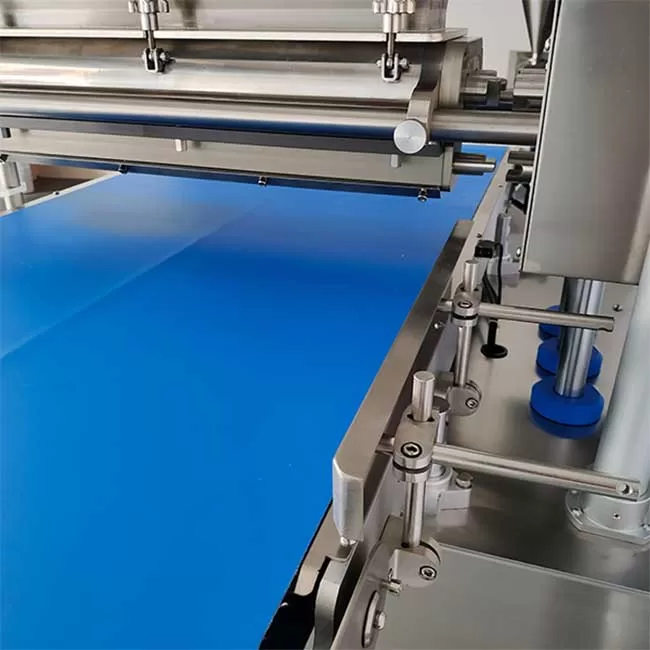

√ According to own needs, works with conveyor.
√ Working width up to 1200 mm.
√ Replaceable hopper capacity.

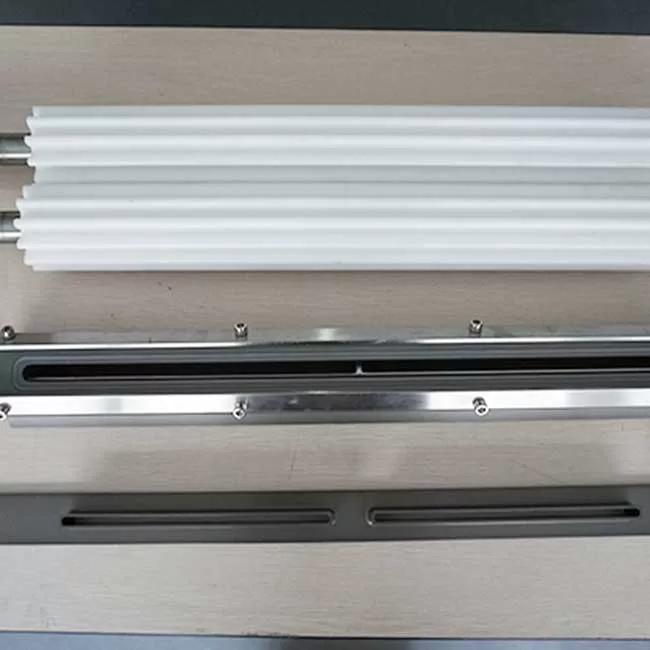

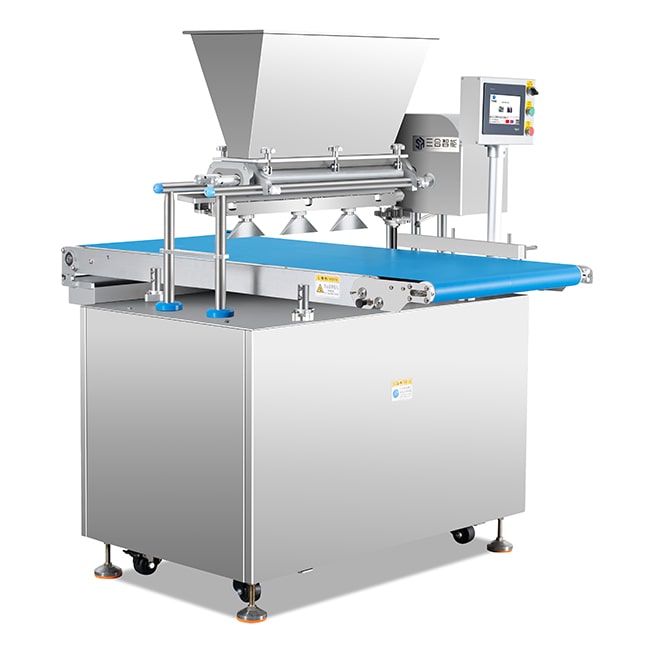

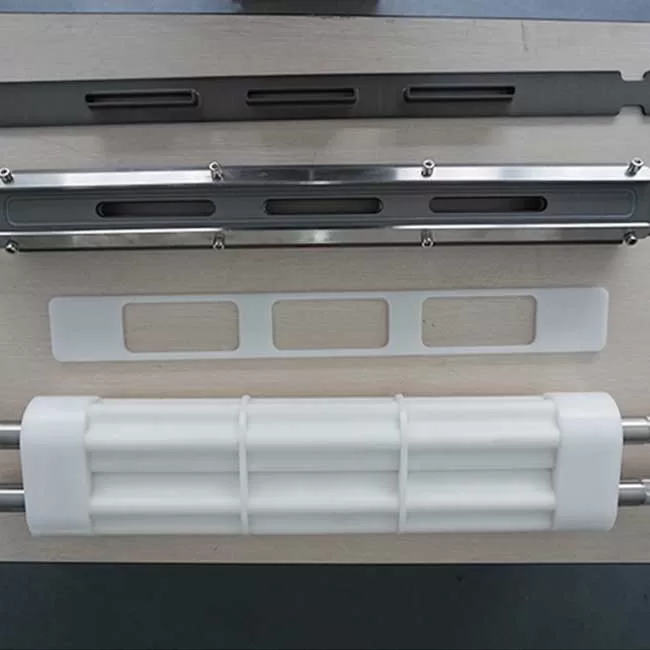

| Model | C600A | Configurable Options: 1. Whole tray depositing system 2. High precision depositing system 3. Six-star shaped material roller or 5M material roller 4. Rotary depositing system (C600X model) |
| Power | 2.0KW | |
| Voltage/Frequency | 220V/50HZ | |
| Compressed Air Pressure & Fow | 0.4-0.6MPa 25L/min | |
| Capacity | Dot-depositing ≤ 60g, 2-3.5second/row
Whole tray ≤ 2000g， 5-10second/tray |
|
| Hopper Volume | 42L | |
| Dimension (L*W*H) mm | 1520*1250*1675 |
