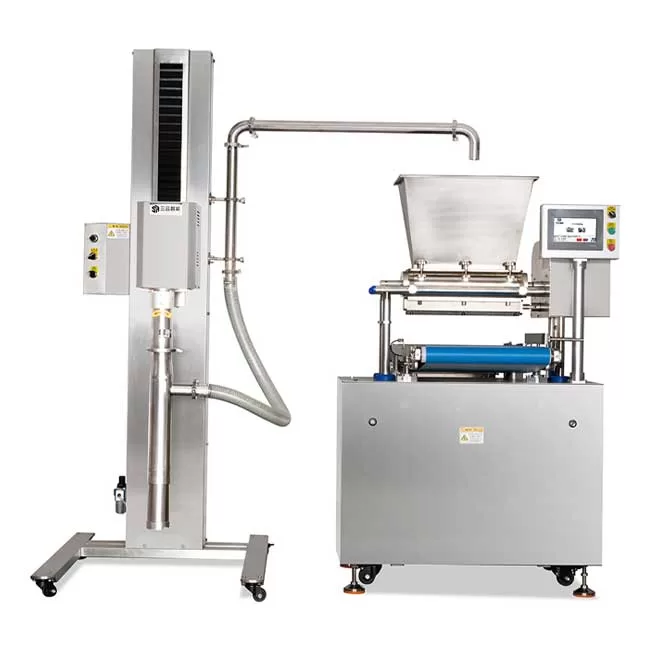

Multi-Station Cupcake Depositor Machine C400-A
This cupcake depositor machine adopts a multi-station synchronous operation design, which can accurately inject materials into multiple cup-shaped molds at the same time, greatly shortening the production cycle. In addition to the basic cake batter injection function, it also supports the uniform application of surface cream and jam to meet the multi-level decoration needs of complex products.
This machine is equipped with a full set of servo motor control systems to ensure accurate and consistent injection volume, reduce material waste and product differences. The servo system is responsive and can flexibly adjust the injection speed and amount to adapt to various fluids such as cake batters and creams of different viscosities to ensure the consistency of product appearance and taste.
Suitable for semi-fluid to very heavy products such as cake batter, cream, mousse, soft cheese, eclair, and macarons.
1520×1010×1520mm
- Gear type: The servo-driven gear pump ensures high-precision dispensing and filling by accurately controlling the rotation angle.
- It is suitable for quantitative filling, decorating and spreading of semi-fluid and particle-free materials, such as sponge&chiffon cake batter, mousse, puffs, brownies, cream, jam and other materials; compatible with round and square mold production.
- It is highly flexible and can be applied to molds with different numbers of arrangements. For baking tray molds within the specification range, there is no limitation on the number and size of nozzles arranged in the same row, which is suitable for baking tray mold products of various specifications.
- The maximum compatible baking tray size is 660*440mm, and a rotating system can be configured (depending on the model).
- Parts that come into contact with food are easy to disassemble and clean, quick and safe.
- Strict material safety application, highlighting industry design standards.

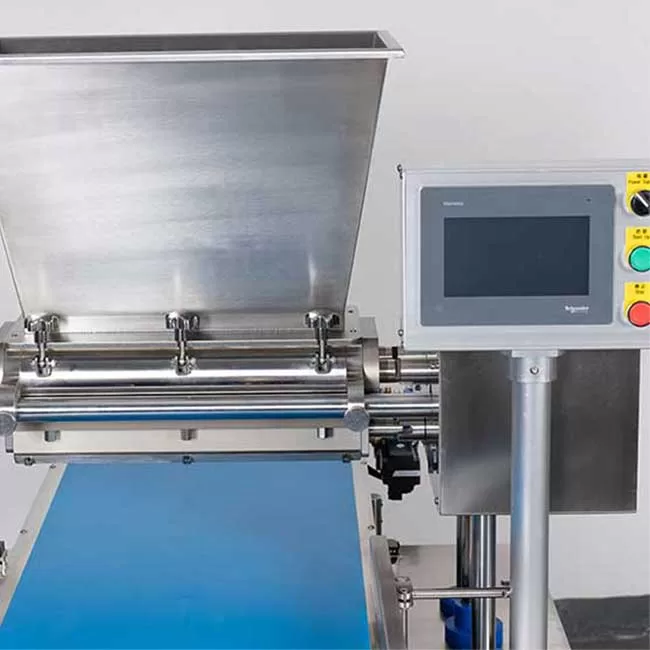

- Equipped with HMI and PLC system, the depositing weight can be freely adjusted.
- Production data can be saved in custom recipes and stored randomly.
- Multiple applications: spot depositing, whole plate depositing, stripe decorating, etc.
√ Hopper double layer heating system.
√ Various nozzle options.
√ Standard accessories and high precision accessories.

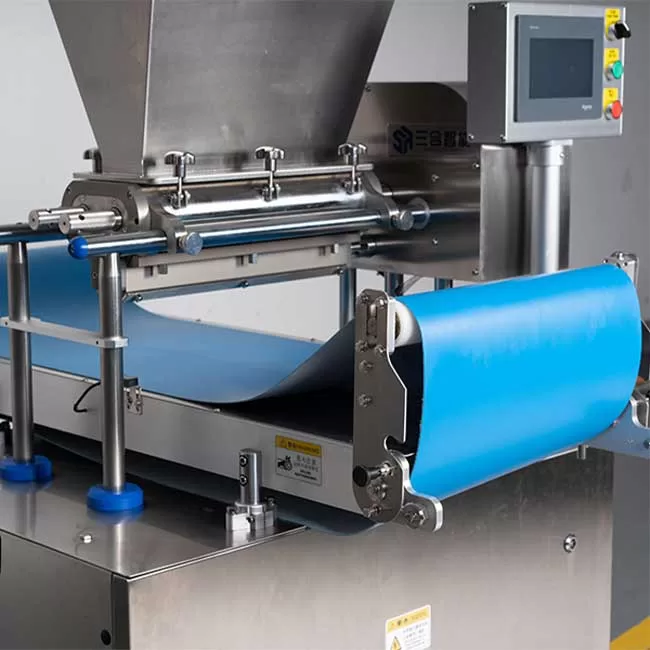

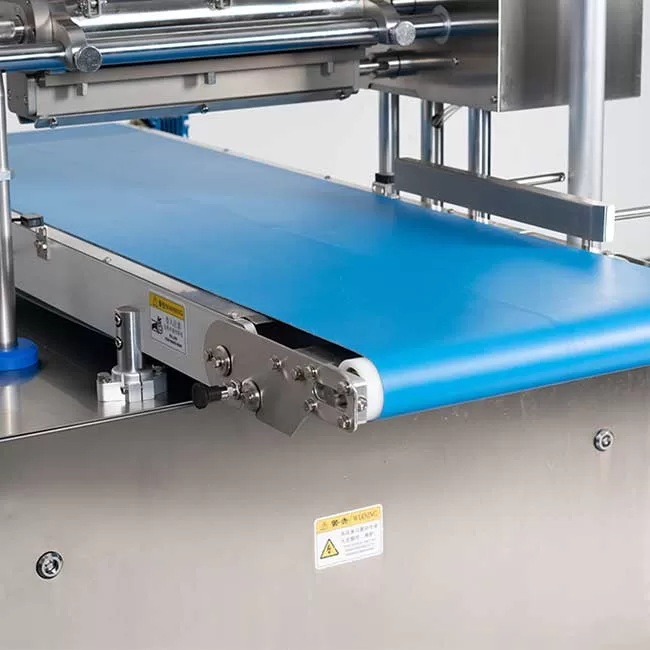

√ According to own needs, works with conveyor.
√ Working width up to 1200 mm.

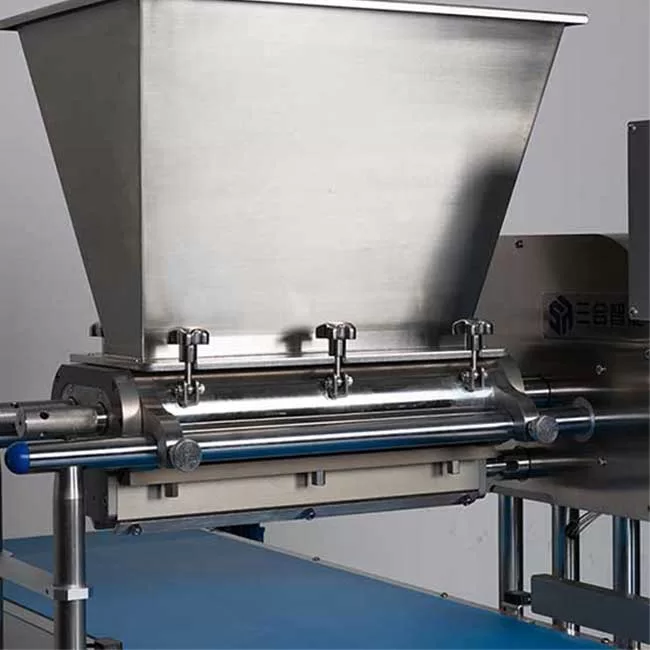

√ Replaceable hopper capacity.
| Model | C400A | Configurable Options: 1. Whole tray depositing system 2. High precision depositing system 3. Six-star shaped material roller or 5M material roller 4. Rotary depositing system (C600X model) |
| Power | 2.0KW | |
| Voltage/Frequency | 220V/50HZ | |
| Compressed Air Pressure & Fow | 0.4-0.6MPa 25L/min | |
| Capacity | Dot-depositing ≤ 60g， 2-3.5second/row; Whole tray ≤ 2000g， 8-10second/tray |
|
| Hopper Volume | 28L | |
| Dimension (L*W*H) mm | 1520*1010*1520 |
